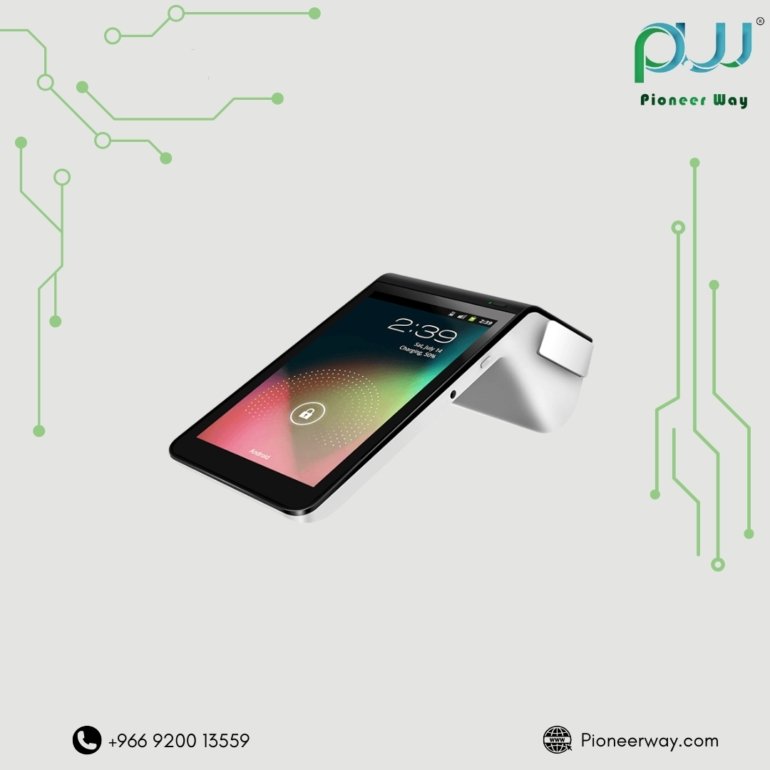

AOBX Android POS

UNIQUE FUNCTIONS

To provide “cloud backup” mini touch Pad POS electrical cash register.
All-in-one Pad POS design: integrating with touch screen, printer, customer display, WIFI, BT, 4G*, NFC card*, camera*, magnetic head*, scanner*, etc., meet multiple commercial needs. (Items marked with * are optional.)
Equipped with a high-performance quad-core processor, its high energy efficiency and low power consumption characteristics ensure stable, efficient and safe operation of the product.
Adopting a frameless capacitive touch screen, it is not easy to malfunction and aging. No need to maintain, with high reliability. Compared with the resistance screen, in addition to various defects such as opaque, easy to scratch, and becomes blurred and the sensitivity decreases after a long time. The biggest problem of the five-wire resistive screen: The resistance value will become larger due to being pressed. The position of the frequently pressed will be distorted, and it will need to be recalibrated frequently. It even needs to be pressed hard, scrapped and replaced with new ones!
Built-in 3Ah lithium battery UPS, able to print 300 receipts continuously or stand by for 10 hours, which can avoid data loss and sales interruption caused by sudden power outage.
With multiple I/O interfaces: Ethernet, USB, RS232, cash drawer port, etc.
With buyer-protective function, guard against competitive softwares from running unauthorized software by RUU, protect the interest of investors buying machine.

EXCELLENT FUNCTIONS

Support retail, service, gas station and prepaid industry applications. It can directly visit remote databases through Webservice, establish chain networks, and support online upgrades.
The 8″ LCD full-screen touch experience, unique vertical capacitive LCD display (resolution 800*1280), allows more items to be displayed, which is more convenient for viewing.
Support Android7.1/8.1 operating system, welcome software companies to discuss cooperation system solutions.
2″ thermal printer without cutter, with the original oblique penetrating paper-out detection (the world’s first patent), with an easy- replacing- cutter structure, which can easily and quickly replace the cutter without turning on the shell, and also with the flexible black mark positioning function.
Modular hardware design is convenient for product upgrade and maintenance.

Specifications

Model		AOBX
Host Configuration	Processor	RK3288/RK3399,main frequency1.8GHz
	Storage	2GB+16GB/4GB+32GB(optional)
	Operating system	Android7.1/8.1
	Power supply	13.8V 2.5A
	Battery	7.4V，3200mAh
Display	Store display	8″ TFT (800*1280)
	Touch panel	Capacitive
	Customer display	65*132 dot matrix LCD
I/O Port	USB	3
	Serial port	1
	Cash drawer	1
	Ethernet port	1 RJ45
	SD Card socket	1 MicroSD card socket
Options	BT	V2.1+EDR/BT v3.0+HS/BT v4.2
	WiFi	IEEE 802.11b/g/n/d/e/h/i
	4G	GSM:EGSM900MHz/DCS1800MHz WCDMA:BAND1/8 LTE-FDD:B1/B3/B5/B7/B8/20 LTE-TDD:B38/B40
	NFC(optional)	Support ISO/IEC1443Type A&B;Felica; Mifare card(MIFARE Classic 1K/4K;MIFARE Ultralight; MIFARE Ultralight C;MIFARE PLUS & MIFARE DESFire)
	Magnetic head(optional)	Support ISO7811, three tracks two-way
	Camera (optional)	5 mega-pixel, auto-focusing, support one dimensional code & qr code scanning
	Scanner (optional)	CMOS
Printer	Thermal printer	2”without cutter (57mmxΦ50mm)
Printer	Printing speed	150mm/s
Dimension		279(L)131mm(W)100mm(H)

Model		AOBX
Host Configuration	Processor	QualcommMSM8916, quad-core, up to1.2Ghz
	RAM	1 GB DDR3
	Storage	8 GB eMMC
	OS	Android 7.1
	Power supply	13.8V 2.5A
	Battery	7.4V, 3200mA
Display	Display screen	8″ TFT (1280*800)
	Touch panel	Capacitive touch screen
	Customer display	65*132 LCD
I/O Port	USB2.0	3*USB
	Serial port	1
	Cash drawer port	1
	Ethernet	1*RJ45
	SD Card	1*MicroSD Card
Peripherals	Bluetooth	BT4.0,V4.0+EDR
	WiFi	IIEEE 802.11a/b/g/n 2.4GHz+5.0 Ghz
	GPS	AGPS
	2G/3G/4G	GSM/EDGE850/900/1800/1900; WCDMA band 1,2,5,8; FDD LTE band 1,3,5,7,8,20; TDD LTE band 40,41
	NFC(optional)	ISO/IEC1443Type A&B；Felica；Mifare (MIFARE Classic 1K/4K；MIFARE Ultralight；MIFARE Ultralight C；MIFARE PLUS & MIFARE DESFire)
	MSR(optional)	ISO7811, three magnetic head
	Scanner(optional)	CMOS
	Camera(optional)	5 mega-pixel, auto-focusing, support one dimensional code & qr code scanning
Printer	Thermal printer	2”without cutter（57mmxΦ50mm）
Printer	Printing speed	150mm/s
Dimension		279mm(L)131mm(W)100mm(H)
